ASTM A213 T5 Superheater and Heat-Exchanger Tubes

Price: 1000.0~3000.0 USD
Payment Terms: T/T,L/C,D/P
Place of Origin: Shanghai, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ASTM A213 T5
Production Capacity: 1000 tongs/year
Delivery Date: 30 days
Means of Transport: Ocean,Land
Packing: in wooden boxes

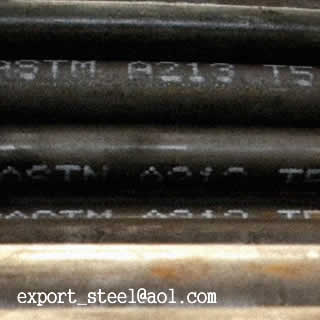

ASTM A213 T5 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

 ASTM A213, ASTM A213 T5, heater tubes, steel tubes, superheater tubes
ASTM A213 T5 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.
Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H.
These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements. The tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished. Heat treatment shall be done separately and in addition to heating for hot forming. The ferritic alloy and ferritic stainless steels shall be reheated. On the other hand, austenitic stainless steel tubes shall be furnished in the heat-treated condition. Alternatively, immediately after hot forming, while the temperature of the tubes is not less than the minimum solution temperature, tubes may be individually quenched in water or rapidly cooled by other means. Tension test, hardness test, flattening test, and flaring test shall be done to each tube. Also, each tube shall be subjected to the nondestructive electric test or hydrostatic test.
ASTM A209 Through A213
  • Other standard specifications include the categories of A209 seamless carbon-molybdenum alloy-steel boiler and superheater tubes; A210 seamless medium-carbon steel boiler and superheater tubes and A213 seamless ferritic and austenitic steel boiler, superheater and heat-exchanger tubes. Piping wall thicknesses range from 1/2 inch to 5 inches. A213 grades also have the letter H or M assigned, which changes the composition and specifications for that series.
This abstract is a brief summary of the referenced standard. It is informational only and not an official part of the standard; the full text of the standard itself must be referred to for its use and application. ASTM does not give any warranty express or implied or make any representation that the contents of this abstract are accurate, complete or up to date.
Chemical Composition(%) for ASTM A213 T5 Low Alloy Steel
UNS DesignationK41545
Carbon0.15
Manganese0.30–0.60
Phosphorus0.025
Sulfur0.025
Silicon0.5
Nickel
Chromium4.00–6.00
Molybdenum0.45–0.65
Vanadium
Boron
Niobium
Nitrogen
Aluminum
Tungsten
Other Elements
Mechanical properties
Tensile strength(min)415Mpa
Yield strength(min)220Mpa
Elongation30%
Delivery conditionannealed
Packing:
  • Packed in wooden crates, wrapped in plastic, and suitably protected for sea-worthly delivery or as requested.
  • Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.
Delivery:
Pipes are supplied in hexagonal bundles or round bundles tied with steel strip.
Weight of bundle – up to 5000 kg upon request of customer.
Each bundle is furnished with three tags.
